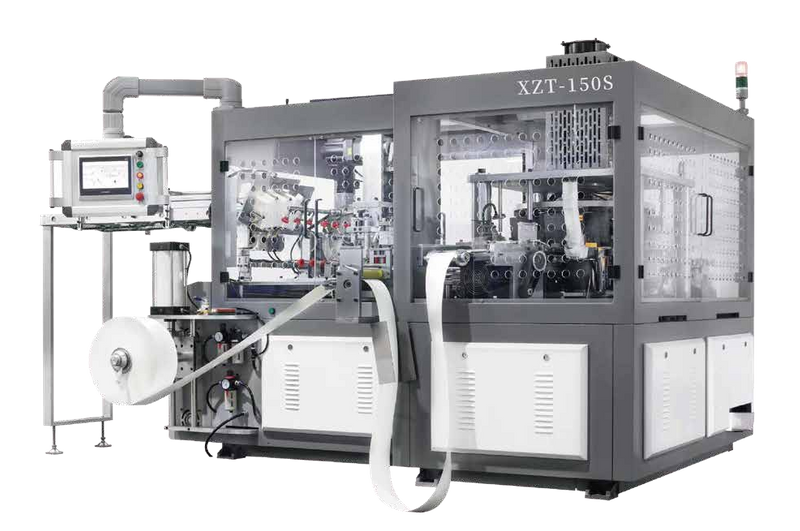

XZT-150S Square Bowl Machine

XZT- 150S is the latest model developed according to market demand. The whole machine is driven by servo motor and controlled by PLC. Each part is independent and uses a special bottom design to greatly reduce the problems that may occur when the bottom is bonded.
The servo makes the machine more stable and the speed is more excellent.

Availability:

Quantity:



Inquire

Model:
XZT-150S
Brand:
NEWSMART

Product Description

Model	XZT-150S Rectangular Bowl Machine

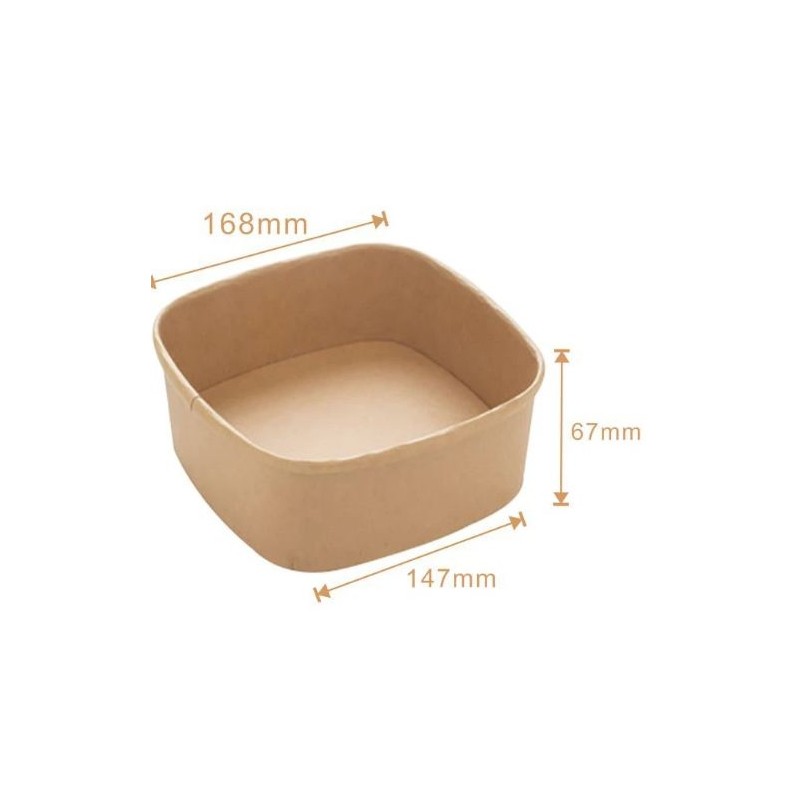

Bowl Size	Length:100-170mm, Width:95-150mm, Height:40-150mm
Material	170-380GSM single or double PE / PLA /PP coated paper (0.25-0.5mm thickness)
Speed	90-110pcs/min
Power Supply	3phase 380V-400 50Hz, 60KW (running consumption is 20KW)
Air Supply	0.6Mpa (running consumption 0.5Nm3/min)
Dimension	2915x2255x2125mm
Weight	5000kgs
