XZT-150S

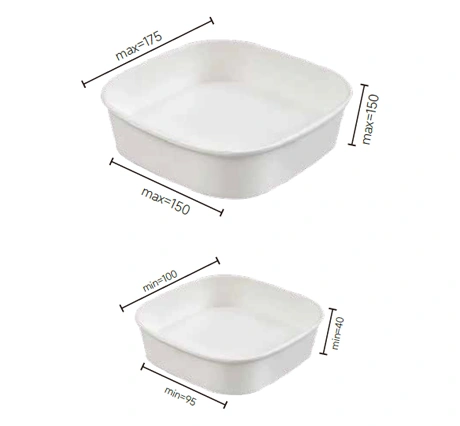

| Bow Dimension | L:175-100 W:150-95 H:150-40 |
|---|---|
| Machine Speed | 90-110 PCS/MIN |
Fast-Food Chains
Fast-Food Chains
Eco-Friendly Packaging
Eco-Friendly Packaging

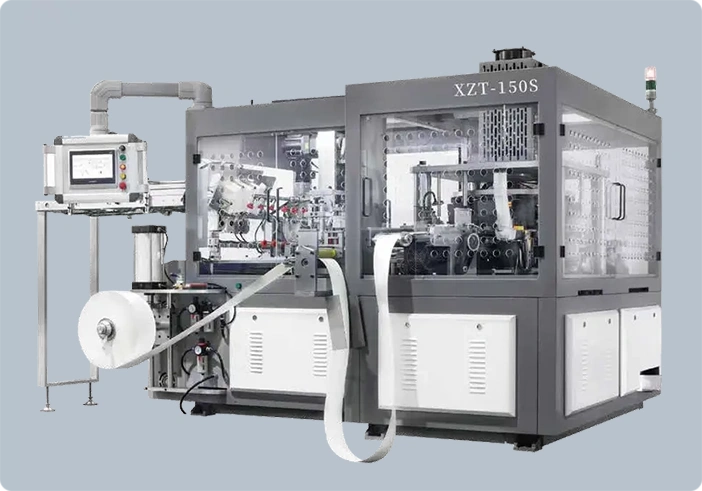

XZT- 150S is the latest model developed according to market demand. The whole machine is driven by a servo motor and controlled by a PLC. Each part is independent and uses a special bottom design to greatly reduce the problems that may occur when the bottom is bonded.
The servo makes the machine more stable, and the speed is more excellent.

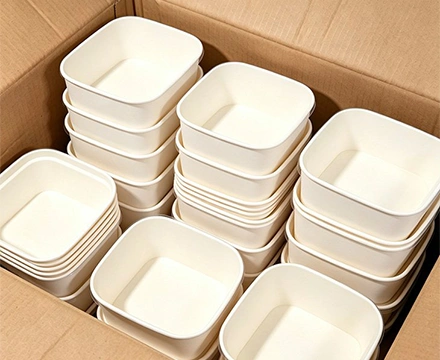

With our full-servo paper food container making machine, you can produce 110 square bowls in one minute. Servo control reduces defective bowls by 15%, and lets you meet high-volume demand for supermarkets, convenience stores, and takeaway packaging.

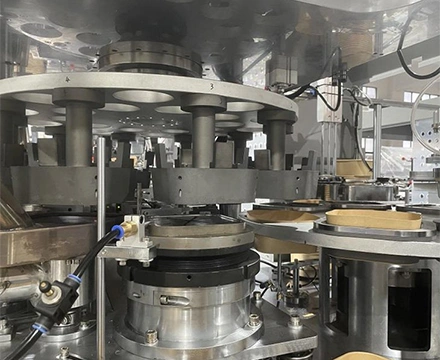

Our machine helps you reduce labor and downtime with independent servo stations. The downtime has been reduced by 20% if servo motor-driven vs traditional mechanical systems. You can produce square and rectangular containers at 90-110pcs/min with model XZT-150S for fresh food, ready-to-eat meals, and takeaway food containers. So, it saves your costs.
| Model | XZT-150S | |
|---|---|---|
| Dimension | L:175-100 W:150-95 H:150-40 |  |
| Material | 170-380GSM single or double PE/PLA coated paper 0.25-0.5mm thickness |
|
| Thickness | 0.25mm-0.50mm | |
| Speed | 90-110pcs/min | |
| Power Supply | 3phase 380V 50Hz,60KW (running consumption is 2oKW) |
|
| Air Supply | 0.6Mpa (runnIng consumptlon 0.5Nm3/mIn) | |
| Weight | 5000KG | |
| Dimension | 2915L+2255W+2125H |
