Double Wall Paper Cup Machine

Key Benefits

Seepage-Free Glue

Servo-controlled glue application eliminates excess glue and staining.
Corrugated or Plain Sleeve

Handles both sleeve styles with automatic alignment.
No Cam Drift

Digital timing keeps inner and outer layers perfectly aligned across thousands of cups.

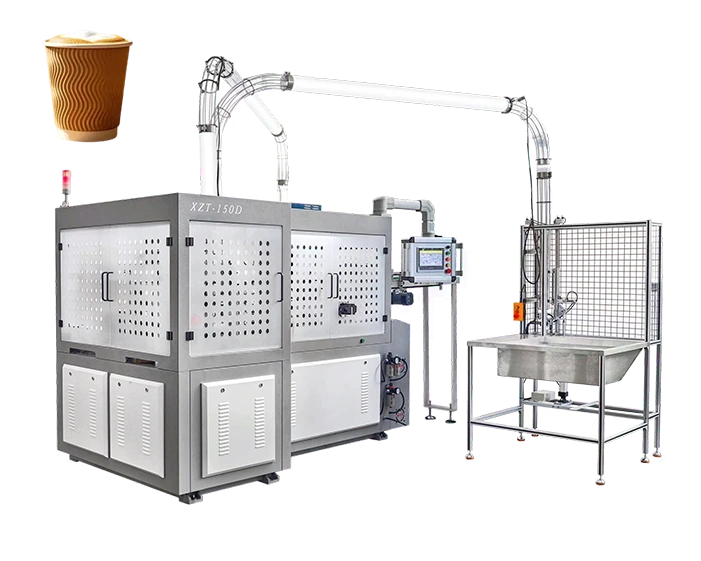

XZT-150D

Full Servo System Double Wall Paper Cup Machine

The XZT-150D fully servo-driven double-layer paper cup machine offers a maximum speed of 160 cups per minute when paired with a paper cup maker. It is designed for producing double-layer hollow paper cups and comes equipped with an automatic lubrication system for easy maintenance. With simple, convenient operation, the machine meets the demands of the digital world while ensuring reliable performance.

Cup Size: 4-16 OZ
Machine Speed: 120-160 PCS/MIN

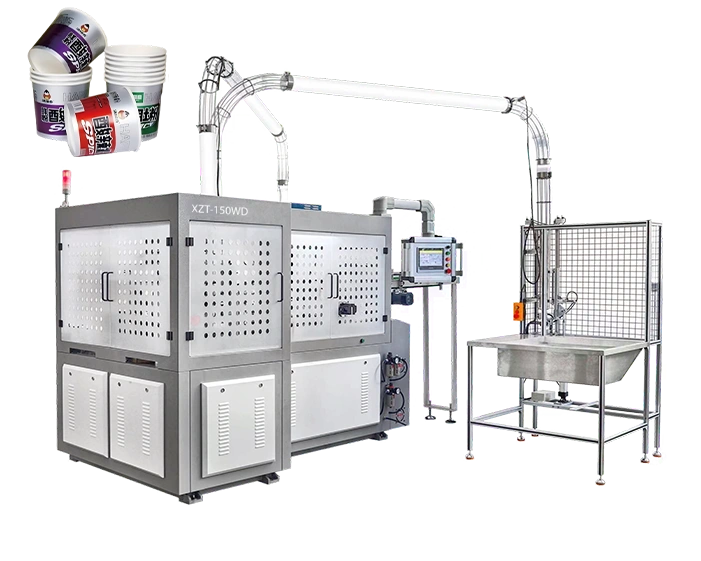

XZT-150WD

Full Servo System Double Wall Paper Bowl Machine

Introducing the XZT-150WD fully servo-driven double-layer paper cup machine, equipped with an automatic lubrication system for easy maintenance and convenient operation. With advanced technology, this machine guarantees high efficiency and productivity, ensuring high-quality output.

Cup Size: 16-57 OZ
Machine Speed: 120-150 PCS/MIN

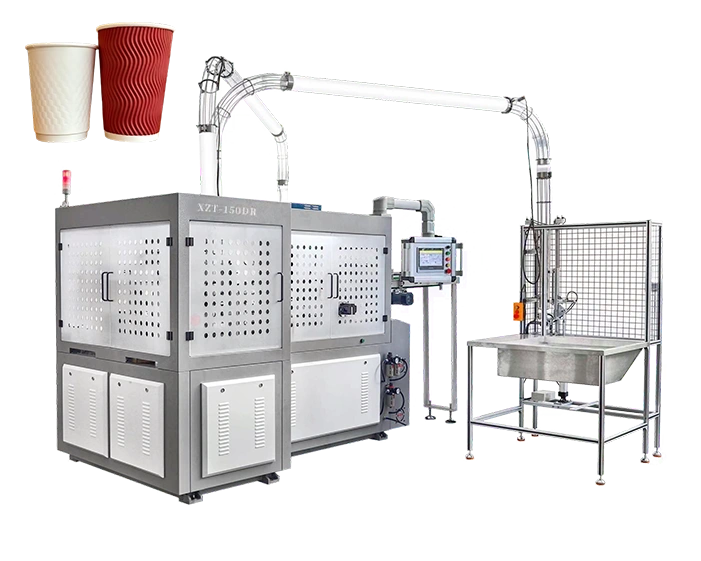

XZT-150DR

Paper Cup Sleeve Machine With Inline Ripple

The fully servo-driven double-wall paper cup machine is widely used in various industries. Its high precision and efficiency make it an ideal choice for the mass production of coffee cups, tea cups, and other hot and cold-beverage cups.

Cup Size: 4-16 OZ
Machine Speed: 120-150 PCS/MIN

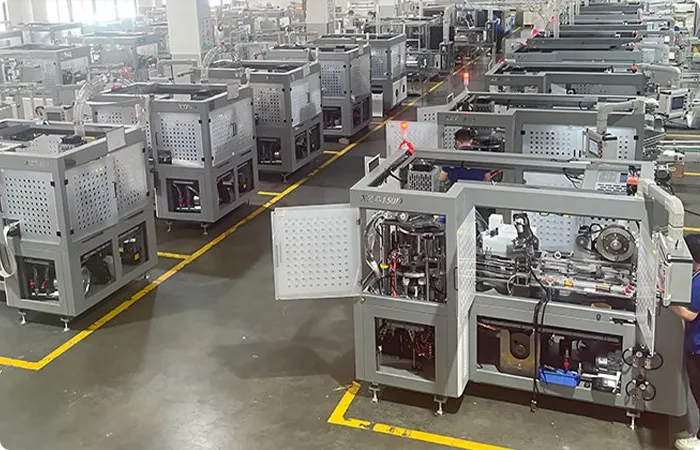

Servo-Controlled Sleeve Alignment for Consistent Double Wall Cup Forming

Traditional double wall cup machines can suffer from sleeve misalignment, uneven glue application, and positioning drift during high-speed production. NEWSMART full-servo double wall paper cup machines use digitally synchronized servo control for sleeve feeding, gluing, positioning, and forming, helping maintain accurate alignment between the inner cup and outer sleeve.

The system supports both plain and corrugated sleeve applications while reducing glue overflow, misalignment, and unnecessary material waste. Stable digital timing also helps maintain consistent bonding quality during continuous high-speed production, making the machines suitable for double wall coffee cups, insulated beverage cups, and ripple cup applications.

FAQ

Q1: What is the difference between fully automatic ripple cup machines and double wall paper cup making machines?

The ripple sleeve paper cup machines have an embossing device. It can produce both standard double-wall cups and lightly corrugated ripple cups using flat paper blanks. This one-machine dual function is flexible and lets you save costs by ~20%. Traditional double paper cup machines require different paper materials for different sleeve types. For example, embossed sleeves need pre-formed corrugated sheets, so you need separate materials for each type.

Q2: Can one machine produce both ripple cups and double wall cups using flat cup fan paper material?

Yes, our full servo ripple paper cup machine is equipped with an optional embossing device. When the embossing function is activated, it produces ripple outer layers. The machine can be flexible to produce standard double-wall paper cups using flat sleeves if the embossing system turns off.

Q3: What is the production stable speed of a high-speed ripple paper cup machine?

Our high-speed ripple paper cup machine can run at 120–150pcs/min. If the cup size and material are different, the speed will be changed. Generally, the speed is 150pcs/min. The full servo system ensures stable operation during long production runs.

Q4: Is the 4–16oz ripple paper cup machine energy-efficient?

Yes, our full servo ripple paper cup machine reduces energy consumption by approximately 10–15% if compared to traditional mechanical machines. In addition, it also reduces your maintenance time and labor costs.

Q5: How does the double wall paper cup making machine work?

The double-walled paper cup production system can match speed models, such as the XZT-150 full servo paper cup machines. After the sleeve cup is formed, the inner cup is ejected from the paper cup machine onto an auxiliary turntable, where it automatically drops into the outer sleeve, ensuring smooth demolding of the double-walled paper cup.

Q6: Can I use only base paper for double wall cups?

There are two production options. The first is to use coated paper or hot-melt adhesive applied by the paper supplies. The second option is to equip the machine with an additional hot-melt glue system, allowing the use of plain base paper. The machine will apply hot-melt adhesive during production.
