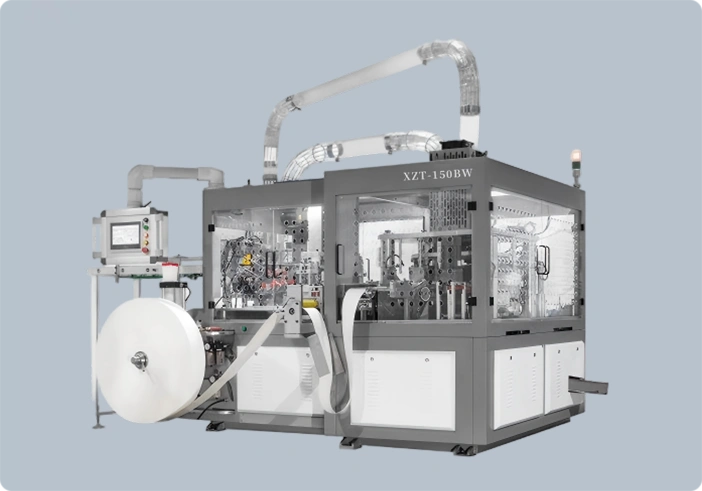

XZT-150BW
| Cup Size | 32-88 OZ |
|---|---|
| Machine Speed | 110-130 PCS/MIN |
Cinema Chains
Takeaway Salad Bowls
Fast-Food Chains
Eco-Friendly Packaging
The machine adopts a full servo structure, with a maximum diameter of 185mm, a maximum height of 180mm, a speed of 110-130pcs per minute, and low power consumption with high output.

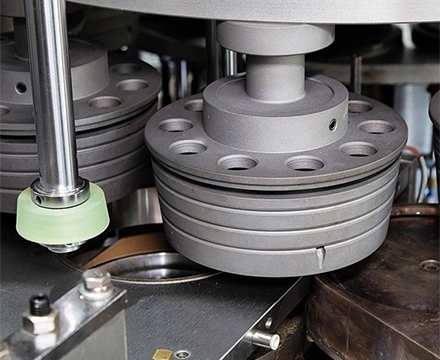

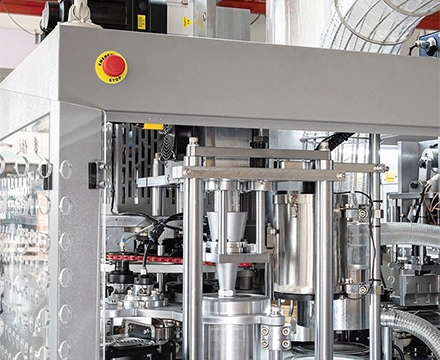

Our advanced full-servo high-speed paper bowl machines use independent servo motors to control every production station. Paper feeding, accurate forming, and uniform sealing have an independent servo motor. All bowl sizes range from 32 to 88 oz. The fully automated system reduces mechanical errors and stabilizes high-speed production. You can produce soups, salads, popcorn, and takeaway paper bowls with this machine.
Our fully automatic large high-speed paper bowl machines with servo control are high-speed and energy-efficient. The consumption power is only 22 kw/h for this model XZT-150BW. With minimal maintenance and user-friendly controls, you can save costs and improve production. The producing range is large bowls and buckets, like salads or popcorn.
| Model | XZT-150BW | |
|---|---|---|
| Cup size | 32-88oz |  |
| Material | 170-380GSM single or double PE/PLA coated paper 0.25-0.5mm thickness | |
| Thickness | 0.25mm-0.50mm | |
| Speed | 110-130pcs/min | |
| Power Supply | 3phase 380V 50Hz, 60KW (running consumption is 22KW) |
|
| Air Supply | 0.6Mpa (running consumption 0.5Nm3/min) | |
| Weight | 5000kgs | |
| Dimension | 2915L+2255W+2125H |
