HH-RY850B
| Printing Color | 4 Colors |
|---|---|
| Printing Speed | 40 m/min |
Printing
Printing
Printing

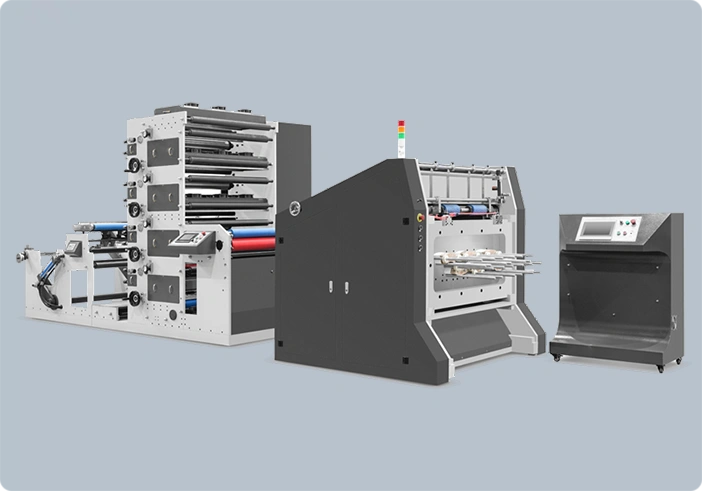

Streamline production with NEWSMART In-line Flexo Printing and Die-cutting Machine. Print costs.

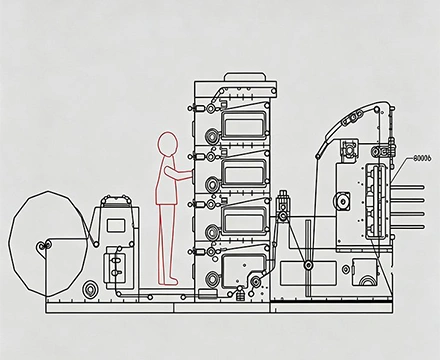

Newsmart offers the flexographic machines and optional inline punching solutions. Choosing the integrated printing and punching machine can reduce labor by 40% and improve production. It lets you handle large orders faster.

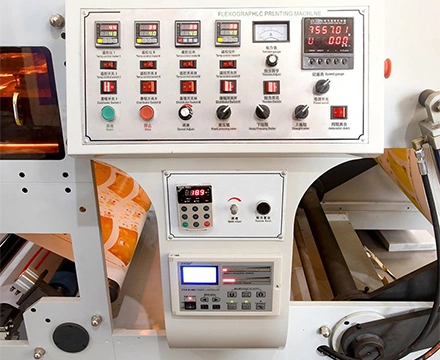

Our flexographic machines have precise printing for different cup sizes and patterns. You can easily change designs or repeat production without the complex setup. It provides flexibility and efficiency for customized orders.
| Model | HH-RY850B | |
|---|---|---|
| Printing speed | 40m/min |  |
| Printing color | 4 colors | |
| Print max width | 850mm | |
| Unwind roll width | 860mm | |
| Unwind roll diameter | 1300mm | |
| Printing length | 180-380mm | |
| Registration accuracy | ±0.10mm | |
| Total Power | 30KW | |
| Air pressure | 0.6MP | |
| Voltage | 380V±10% | |
| Machine dimension | 3500*1300*2350mm | |
| Punching part | ||
| Punching speed | 190-200 times/min | |
| Maximum feeding width | 860mm | |
| Maximum die cutting width | 400*850mm | |
| Locating precision | ±0.1mm | |
| Total power | 8.5kw | |
| Lubrication system | Manual |
Please share your project details below. Our experts will provide you with preliminary equipment recommendations and a tailored configuration proposal within 24 hours
